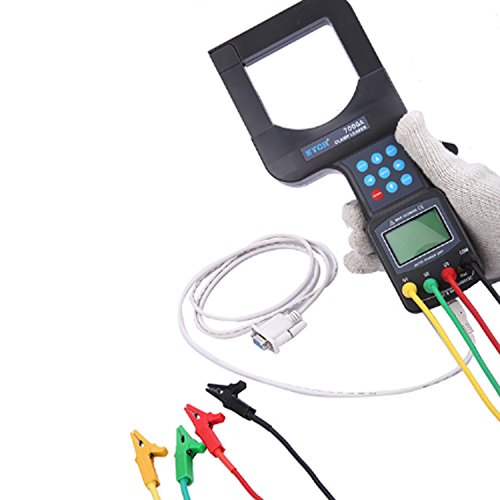

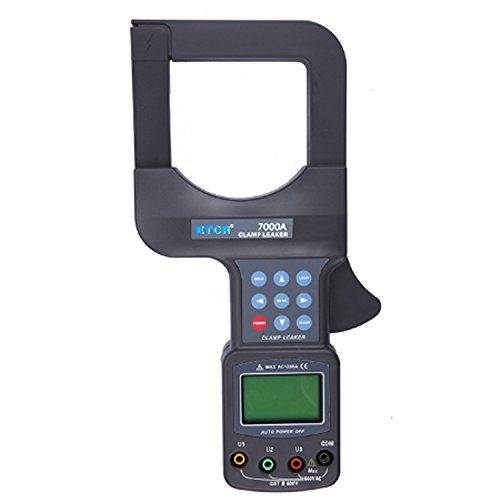

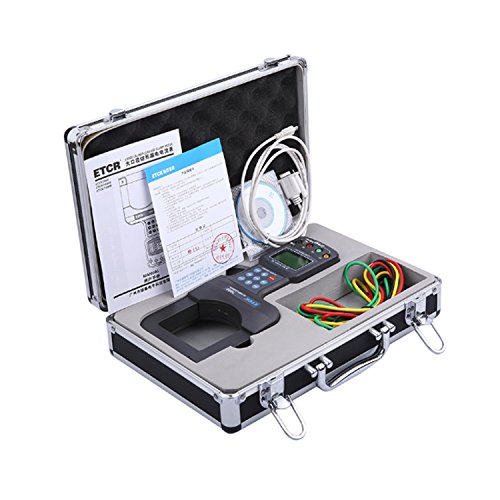

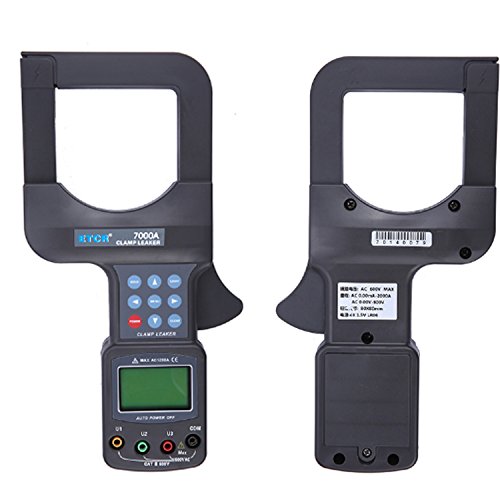

KQYAN High Security Tester Large Caliber Leakage Clamp Meter Multimeter Voltage Detector Current Clamp ETCR7000A

Description

* Function: AC leakage current, current, three-phase AC voltage test* Jaw Size: 80mmx80mm (can clamp φ80mm wire, or 96mmx4mm flat ground)* Display size: 43mmx29mm* Current range: AC 0.00mA～2000A; AC Voltage range: 0.00V ~ 600V* Current resolution: 0.01mA; Voltage Resolution: 0.01v* Accuracy(23 °C ± 3 °C, 70% RH or less, the wire in the jaw center): 0.00mA ~ 300A:± 1.5% ± 3dgt; 300A ~ 1200A:± 2% ± 3dgt; 1200A～2000A: ±3%±3dgt; 0.00V ~ 600V,± 1.5% ± 3dgt* Data memory: 200 sets* Automatic Shutdown 15 minutes after the boot* Power consumption: No backlight: 25mA; backlight: 50mA* Working Temperature and Humidity 0℃~40℃; below 80%rh* Storage Temperature and Humidity -10℃~60℃; below 70%rh* Process Type Clamp CT, Integral Approach* Frequency 50Hz, 60Hz Automatic identification* Peak Maintaining Peak value capture hold function, press HOLD without Release to display peak value* Overflow display Range overflow function: "OL" symbol display* Shifting Automatic Shift* Line voltage Below AC 600V* Measure time: 0.5 seconds/time* Battery Detection When battery voltage is lower than 5.2V, low battery symbol will shown to remind battery replacement.* Insulation Strength AC2kV/rms (between core and box)* Safety Provisions IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)* Weight: 1000g* Power Supply: 9V（Battery not included in the package）* Clamp Meter Multimeter size: Lx W x T: 275mm×145mm×40mm* Standard Accessories: Clamp Meter Multimeter, test line: 4 (1 each for yellow, green, red, and black), RS232 communication cable, software CD, instrument box, operation manual【Shopping needs to know:】1.We maintain high standards of excellence and strive for customer satisfaction,Feedback is very important we request that you contact us immediately before you give us neutral or negative feedback,so that we can satisfactorily address your concerns.<
