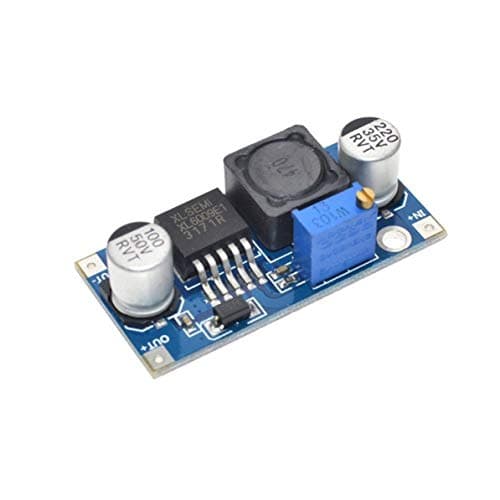

Corneliaa Xl6009 Dc-Dc Boost Module Power Module Output Adjustable Super Lm2577 4A Current Dc-Dc Power Boost Module

Description

Features:1. High-quality material: Made of high-quality materials, safe and durable, stable performance.2. High performance: The XL6009E1 using the second generation high frequency switching technology is the core chip.3. Input voltage: ultra-wide input voltage 3V~32V, the best working voltage range is 5~32V.4. Output voltage: Ultra-wide output voltage 5V~35V.5. More efficient: Built-in 4A high efficiency MOSFET switch tube for up to 94% efficiency.6. Small size, easy to operate: ultra-high switching frequency 400KHz, can achieve very good results with a small capacity filter capacitor, smaller ripple, smaller size.Descriptions:1. The DSN6009 is a high performance boost (BOOST) module with 4A switching current.2. The module uses the second generation high-frequency switching technology XL6009E1 as the core chip, and the boost module has lower cost and better performance.Specifications:Material: electronic componentsInput range: 3V~32VOutput range: 5V~35VConversion efficiency: <94%Switching frequency: 400KHzLoad adjustment rate: ±0.5%Voltage regulation rate: ±0.5%Working temperature: -40 ° C ~ +85 ° Ccolor: blueSize: 43*21*12mmPackage included:1 x XL6009 DC-DC Boost ModuleNotes:Please allow 0-2mm error due to manual measurement, thanks for understanding.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, thank you!
