ElectroCookie ESP32 Terminal Block Shield Kit, Compatible for ESP32-DevKitC, Push-in Simple Spring Connector Expansion PCB Module
Details
- Connector TypeSpring
- Number Of Contacts20
- Mounting TypePCB Mount
- BrandElectroCookie
- Number Of Poles20
- Number of Positions20
Description
🔌 Elevate your ESP32 game with effortless, professional-grade connectivity!
- PLUG PLAY READY - Pre-soldered and assembled shield saves you time and hassle.
- COMPACT DURABLE DESIGN - Sturdy PCB and secure mounting hardware ensure long-lasting performance.
- COMPLETE INSTALLATION KIT - Includes 20-pin ribbon cable, standoffs, and mounting screws for seamless setup.
- EFFORTLESS GPIO EXPANSION - Push-in spring connectors make wiring a breeze—no soldering needed!
- OPTIMIZED FOR ESP 32 DEV KIT C - Designed specifically to enhance your ESP32 projects with reliable terminal connections.

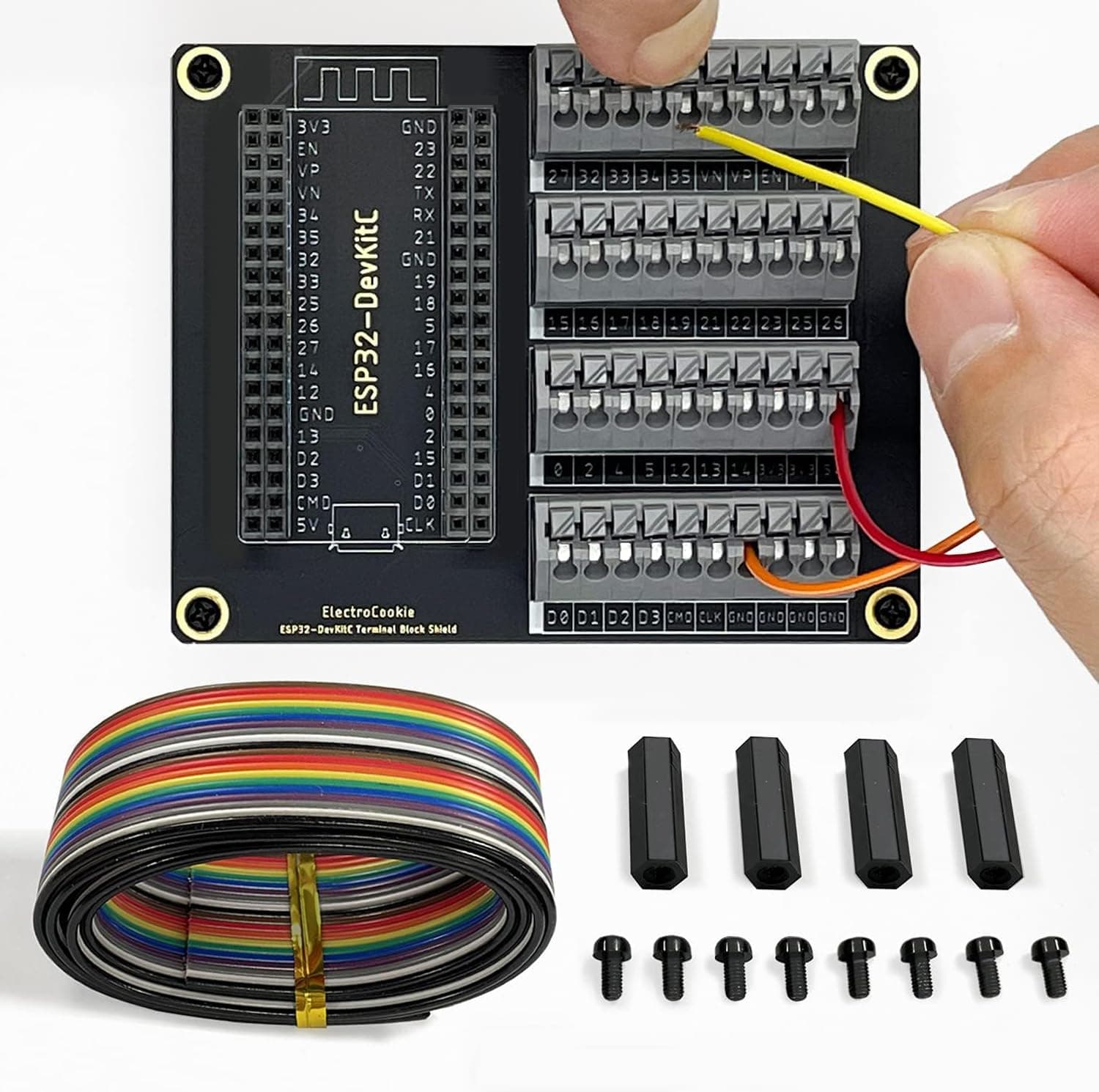

The ElectroCookie ESP32 Terminal Block Shield Kit is a pre-assembled expansion module designed for ESP32-DevKitC boards. Featuring a 20-pin push-in spring terminal block and a 2-foot ribbon cable, it simplifies GPIO pin connections without soldering. The kit includes standoffs and mounting screws for easy installation, making it an essential accessory for streamlined ESP32 development projects.
Reviews
S**E
Perfect fit!
I took my cue from other reviewers to make sure I purchased a board that would fit in this kit. The Esspressif ESP32-DevKitC-32E (ASIN: B09MQJWQN2) fits perfectly!The spring-loaded connectors are easy to use with the provided screwdriver or similar object, less so with my fat fingernail. They securely hold a single wire or up to four 24 AWG twisted together, and allow for easy removal. The spacing is good for cable management. With the supplied stand-offs screwed into the shield kit, I used a dab of JB Weld on the bottom of each to epoxy the kit into the pictured Zulkit Project Box (ASIN: B09B5FBSZB). You can see how many wires I was able to manageably attach to my ESP32 dev board for my for home automation project, with room for more.I would buy this again.
N**E
Love it!
Works amazing. Great quality. Have already bought 3.
M**.
Almost Great
The board is made well, but the pin connectors for the Esp32 are spaced to far apart. I did mange to muscle it in but a concern of stress on the soldering. Please correct this.
S**R
if you have the correct board
This only fits a specific layout of ESP32 board and that wasn't plainly clear, pin spacing is different and that limits its usability,
A**Z
ESP32 does not line up on headers
Will need to force ESP into headers, be careful
A**R
Very nice item. Well built.
Fit and Finnish are very nice. Well built.
L**T
ESP32DevKitC
It came in good time also have two rows on both sides for ESP32 chip dimension that varies
