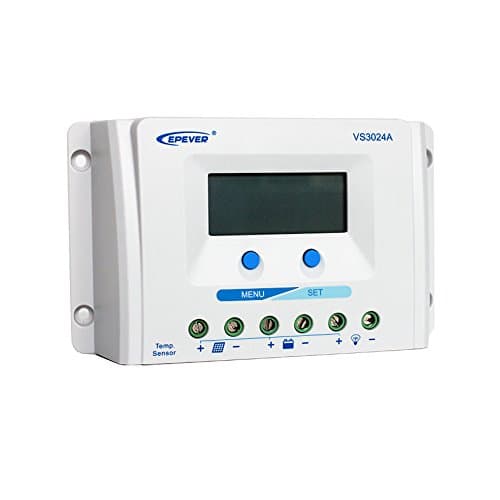

Name: ZHC Solar Charge Controller 20A/30A PWM System with Multiple Load Control Modes (30A)
Brand: Zhc
SKU: 38540469
Price: 156.53 EUR
Availability: OutOfStock

Fully operational. Shipping worldwide, on schedule.Duty & taxes paid at delivery

Help Track order

Account Cart

Fully operational. Shipping worldwide, on schedule.Duty & taxes paid at delivery

Help Track order

Account Cart

Description

Widely Usage: PV Solar System, Solar Home System, Solar Street Light, Traffic Signal, Solar Gardan Lamp, etc. 12V/24V Self Adaptive.
3-Stage intelligent PWM charging: Bulk, Boost/Equalize, Float. 3 Charging Options: Sealed, Gel, and Flooded
Simple Control: LCD Display Operation Data, Working Condition, Switch Load Control Modes, Energy Statistics.
Electronic Protections: PV Short Circuit Protection, PV Reverse Polarity Protection, Battery over voltage protection, Battery over discharge protection, Battery reverse polarity protection, Load overload protection, Load short circuit protection, Battery overheating protection, Controller overheating protection
Battery Temperature Compensation Function (Extra Optional Accessories), 5% More Energy Saving

ViewStar A series is common positive PWM charge controller with LCD display. It adopts the most advanced digital technique. The multiple load control modes enable it can be widely used in solar home system, traffic signal, solar street light, solar garden lamp, etc. Load Control Mode Switch: 1. Manual Set Mode 2. Optical / Brightness Control Mode 3. Optical / Brightness Control ON + Double Interval Timer (Sametime) 4. Debug Mode Specifications: Model: 30 Amp Solar Charge Controller Nominal System Voltage: 12V/24V auto work Rated Battery Current: 30A Rated Load Current: 30A Battery Input Voltage Range: 9~32V Max. PV Open Circuit Voltage: 50V Equalize Charging Voltage: Sealed: 14.6V, Flooded: 14.8V Boost Charging Voltage: Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V Float Charging Voltage: 13.8V Low Voltage Reconnect Voltage: 12.6V Low Voltage Disconnect Voltage: 11.1V Self-Consumption: ≤8.1mA(12V), ≤6.5mA(24V) Grounding: Common Positive Temp. Compensation: -3mV/℃/2V LCD Working Temperature: -20℃ ~ +55℃ Item Working temperature: -25℃ ~ +55℃ Humidity: ≤95% N.C. Enclosure: IP30 Terminals: 16mm2 In The Box: 1× 30 Amp Solar Charge Controller 1× User Manual
