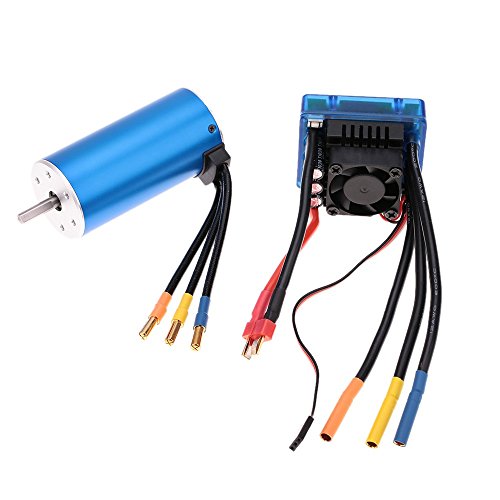

FastWin 3674 2250KV 4P Sensorless Brushless Motor with 120A Brushless ESC（Electric Speed Controller） for 1/8 RC Car Truck (3674 2250KV+120A)

Description

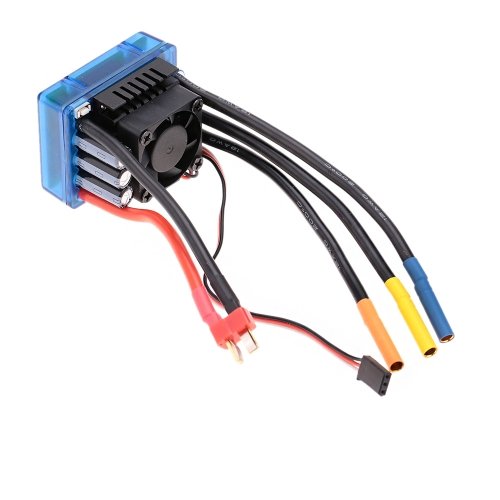

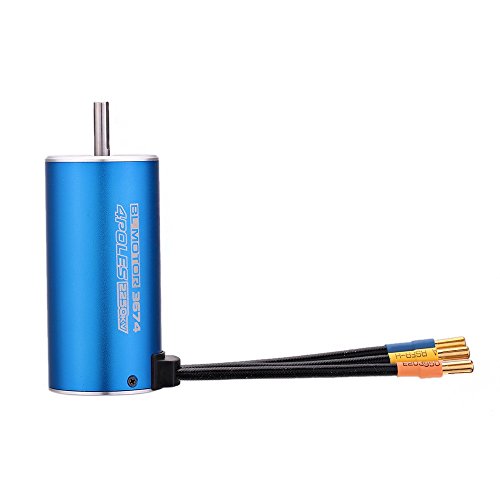

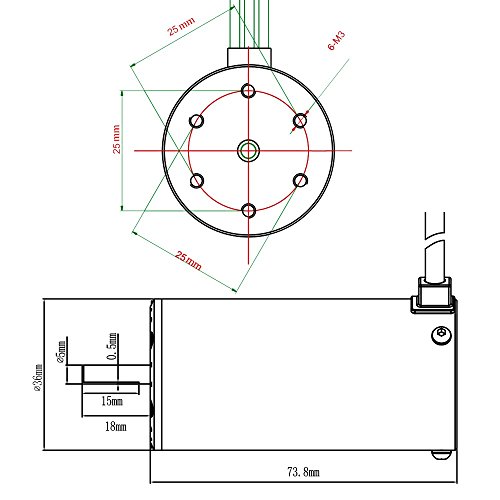

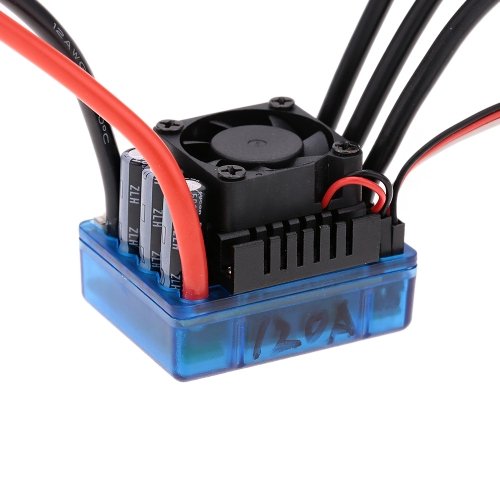

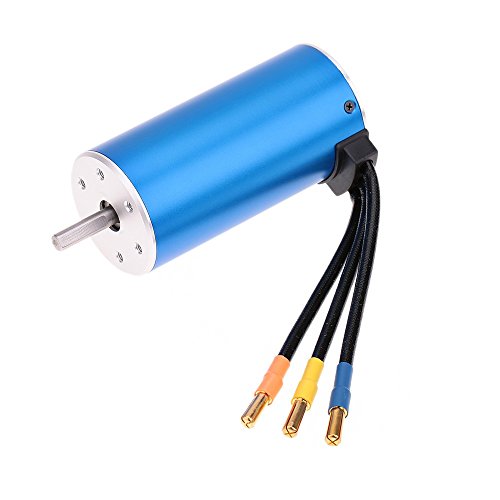

Motor Features: 4 poles Hi-torque motor design. CNC machined 6061 T6 billet alumium heatsink can. High purity copper windings maximizes efficiency. High RPM ABEC5 oversized bearings. Universal fits 1/8 brushless cars-multi-mounting system for M3 screws. Precision balanced rotor, smoothness for best reliability and maximum RPM. Stator - Super Thin (0.35mm) laminations. Removable/replaceable. Precision engineered for maximum energy conversion. Specification: RPM: 2250KV Max Current: 80A Max Watts: 1800W Can Size: 3674 Sensored: No Can Diameter: 36mm Can Length: 74mm Shaft Diameter: 5mm Shaft Length: 17mm Bullet Connector: 4mm Weight: 293.5g/10.4oz Max voltage: 7.4V(2S)-18.5V(5S) Note: there's some little error from human measuring. Electric Speed Controller Features: Compatible with sensorless brushless motors. High anti-interference capability. Using advanced software interface to set up or update the software. Super smooth and accurate throttle linearity. Fast response to throttle input. Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection. Specifications: Cont. Current: 120A Burst Current: 600A/10sec Battery: 2-4 Cell Lipo / 4-8 Cell NiMh SBEC: Yes SBEC Output: 6.1V/3A Power Supply Plugs: T Male Motor Plugs: Female 4mm Bullet Connector Size: 55*43*40mm(with out fan) Weight: 116.1g /4.1oz Package size: 11 * 9 * 6.5cm/ 4.3 * 3.5 * 2.5in Package weight: 446g/15.7oz Package list: 1 * 3674 2250KV 4P Sensorless Brushless Motor 1 * 120A Brushless Electric Speed Controller
