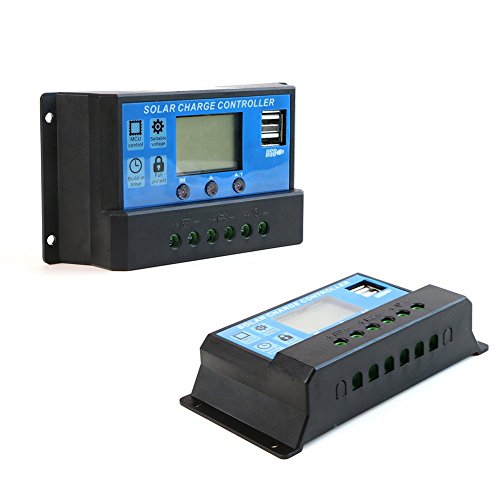

Orient Power 10A PWM Type Solar System Charge Controller For 50 to 300 Watts Solar Panel 12V/24V Battery
Description
- Suitable for 12V / 24V battery system
- Max Solar Panel Input Voltage 50VDC
- PWM Wave Pulse Regulate Output voltage from solar panel to battery, maintain proper voltage on battery for battery protection
- MAIN PURPOSE of this item, Protect your battery from damage by alternative solar panel output due to different sunshine
- How it works: detect battery voltage, as per battery voltage USE PWM signal ON/OFF to manage to increase or reduce the solar panel output average voltage, which is applied on battery for charging.

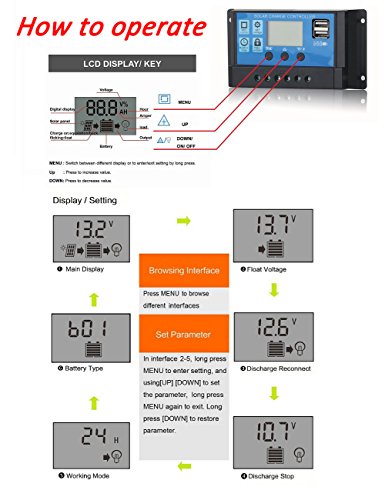

Size:10A Battery Voltage: 12V / 24V auto Adapt Solar Panel Input: Features: 1. Floating charge Voltage (13.7V) 2. Recovery after under Voltage(LVD 11V-13.5V) 3.Under Voltage protection (RVD 9V-12.3V) 4.Load Mode(24hours,1-23hours,0hour) 5.Battery Option (GEL,LEAD-ACID,FLOODED) Batt voltage: 12V/24V auto Charge current: 10A Discharge current: 10A Max Solar input: Equalization: B01 sealed battery 14.4V B02 Gel battery 14.2V B03 flooded battery 14.6V Float charge: 13.7V(defaul,adjustable) Discharge stop: 10.7V(defaul,adjustable) Discharge reconnect: 12.6V(defaul,adjustable) USB output: 5V/2A Self-consume: Operating temperature: -35~+60 degree C System Connection: 1.Connect the battery to the charge regulator - plus and minus. 2.Connect the photovoltaic module to the regulator - plus and minus. 3. Connect the consumer to the charge regulator - plus and minus. NOTE: The reverse order applies when dismantling! Improper sequence order can damage the controller! Package: 1.1X 10A Solar Charge Contorller 2.1X English User Manual For battery information VISIT: ---------------------------------------------- www.orientpower.asia
