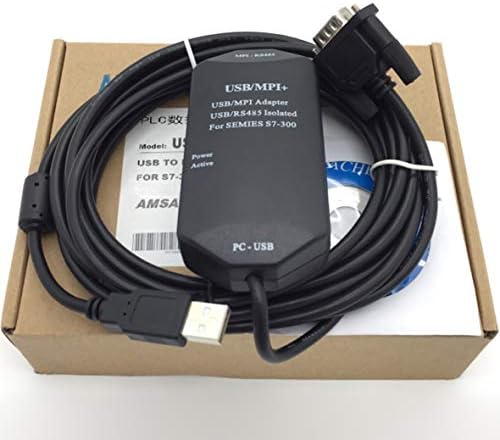

Yoochin USB-MPI+ Isolated PLC Programming Cable for Siemens S7-200/300/400 Support win7 6ES7

Description

Optoelectronic isolated USB/MPI V2.0,Siemens S7-200/300/400 PLC Programming adapter cable,3 meters, with communication indicator, can replace Siemens 6ES7 972-0CB20-0XA0,automatically adjust the communication speed from 19.2Kbps to 115.2Kbps for the PC port, automatically adjust the communication speed from 19.2Kbps to 187.5Kbps for the MPI interface. It doesn't support profibus function. USB/MPI+ is the optoelectronic isolated adapter for industrial design. There is anti-surging& anti-lightning protection circuit for the USB and RS485 interface. It support hot plug. It‘s suitable for the communication between Siemens S7-300/400 series PLC or other equipment with MPI interface and computer. In particular, it applies to the strong interfere industrial scene and the safeguard in the circuit guarantees the safely running of the system. USB/MPI+ programming cable simulate USB port as traditional serial port (usually COM3), which enables existing programming software(STEP 7) to communicate through simulated traditional port and PLC devices. Functions Support Windows2000/Windows XP Support STEP7 V5.2 and higher Fully compatible with USB V1.1 and USB V2.0 Power supply by both USB main line and MPI programming port(Total 1W).with Overcurrent Protection and Surge Protection High optoelectronic isolation voltage up to 1000VDC The USB port design with surge protection .The RS485 port design with overcurrent protection and lightning protection(500W) Baud rate of Com port on PC: 19.2Kbps~115.2Kbps Baud rate of MPI port on PLC: 19.2Kbps~187.5Kbps Support long distance communication up to 1000m Working temperature -20~+75'C Length 3 meters.Color:black One pc supports one USB programming cable only System requirement Please make sure your PC is IBM PC compatible and has the following system requirements before using the USB programming cable.
