Kongnijiwa Module Series 6PCS MT3608 DC Voltage Regulator Step Up Boost Converter Power Supply Module 2V-24V to 5V-28V 2A
Description

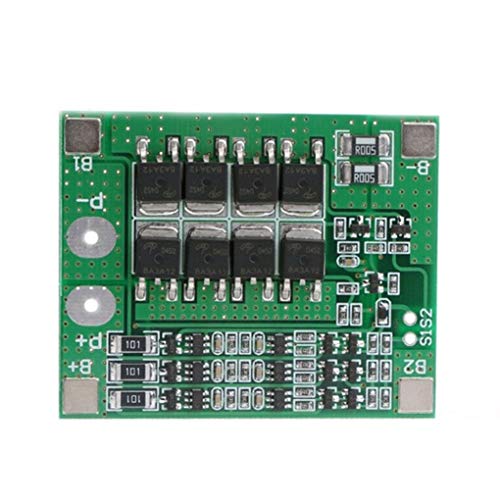

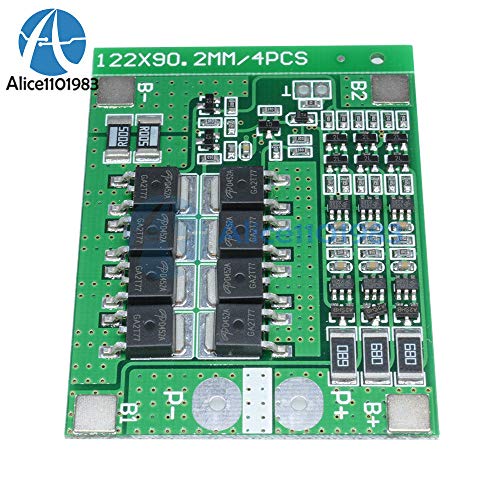

- Strictly according to the diagram wiring: 0V(B-)3.7V(B1)7.4V(B2)11.1V(B+), Do not deliberately short circuit
- Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better
- Do not mix the good battery and the battery, the capacity of the battery internal resistance is closer will be better
- After the line is connected, Need to charge first, then have output
- When the battery is connected in series with 3 groups, Please ensure that the voltage of each battery is the same. If not same, please fill in each set of batteries and then use
DescriptionStrictly according to the diagram wiring: 0V(B-)3.7V(B1)7.4V(B2)11.1V(B+), Do not deliberately short circuit.After the line is connected, Need to charge first, then have output.When the battery is connected in series with 3 groups, Please ensure that the voltage of each battery is the same. If not same, please fill in each set of batteries and then use.Do not mix the good battery and the battery.The capacity of the battery internal resistance is closer will be better.Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better.Specification:Size: about 56 * 45 * 1.2mm.Over voltage range: 4.25-4.35v(0.05v).Over discharge voltage range: 2.3-3.0v(0.05v).Maximum operating current: 0-25A.Maximum transient current: 34-40A.Quiescent current: less than 30uA.Internal resistance: less than 100mΩ.Working temperature: -40 to 50℃.Storage condition: -40 to 80℃.Effective life: more than 30000h.Short circuit protection: Yes, delayed self recovery.Note:There might be a bit color distortions due to different computer resolutions.There might be size errors due to different computer resolutions.Package include:1 * 18650 Li-ion battery protection board.
