Description

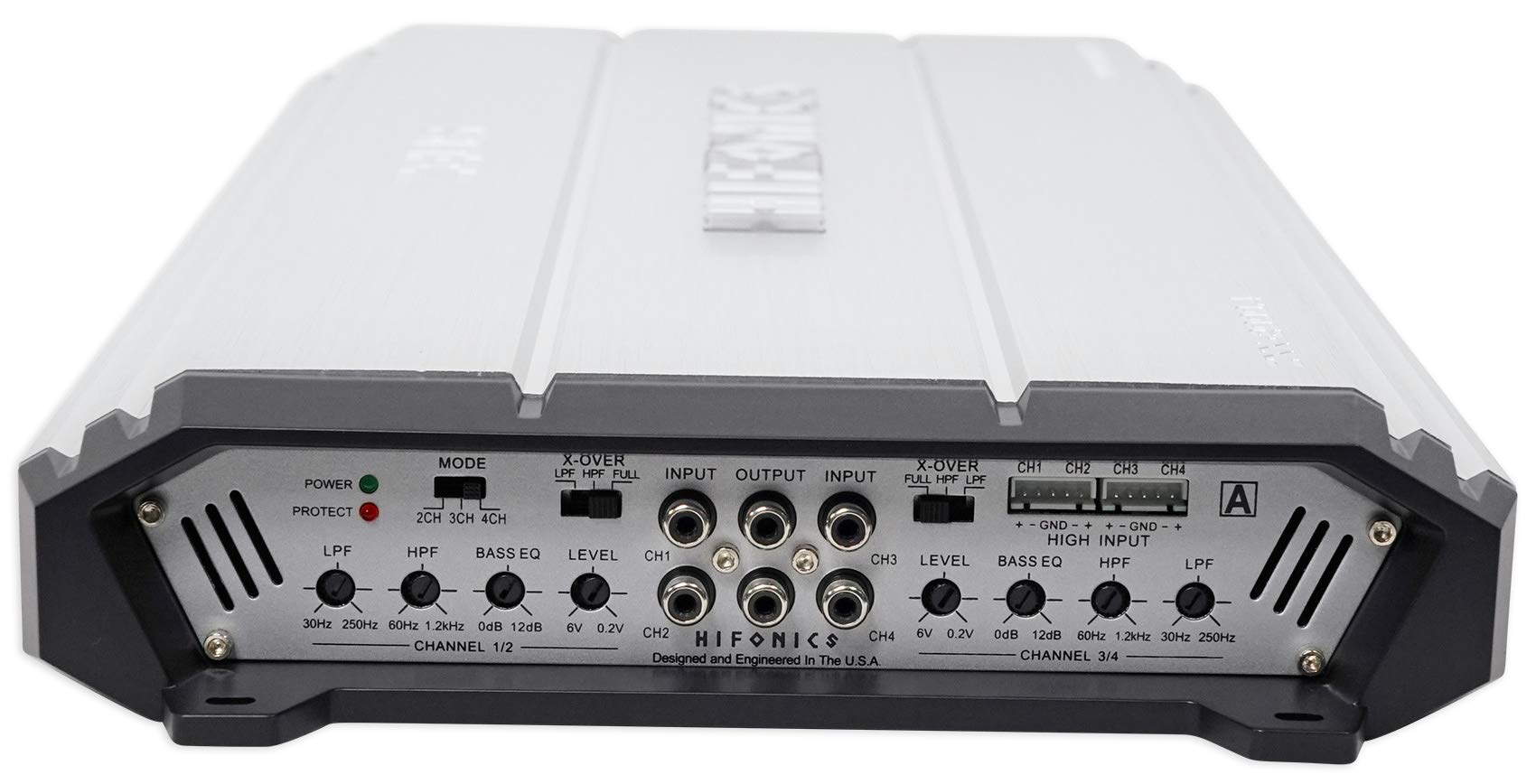

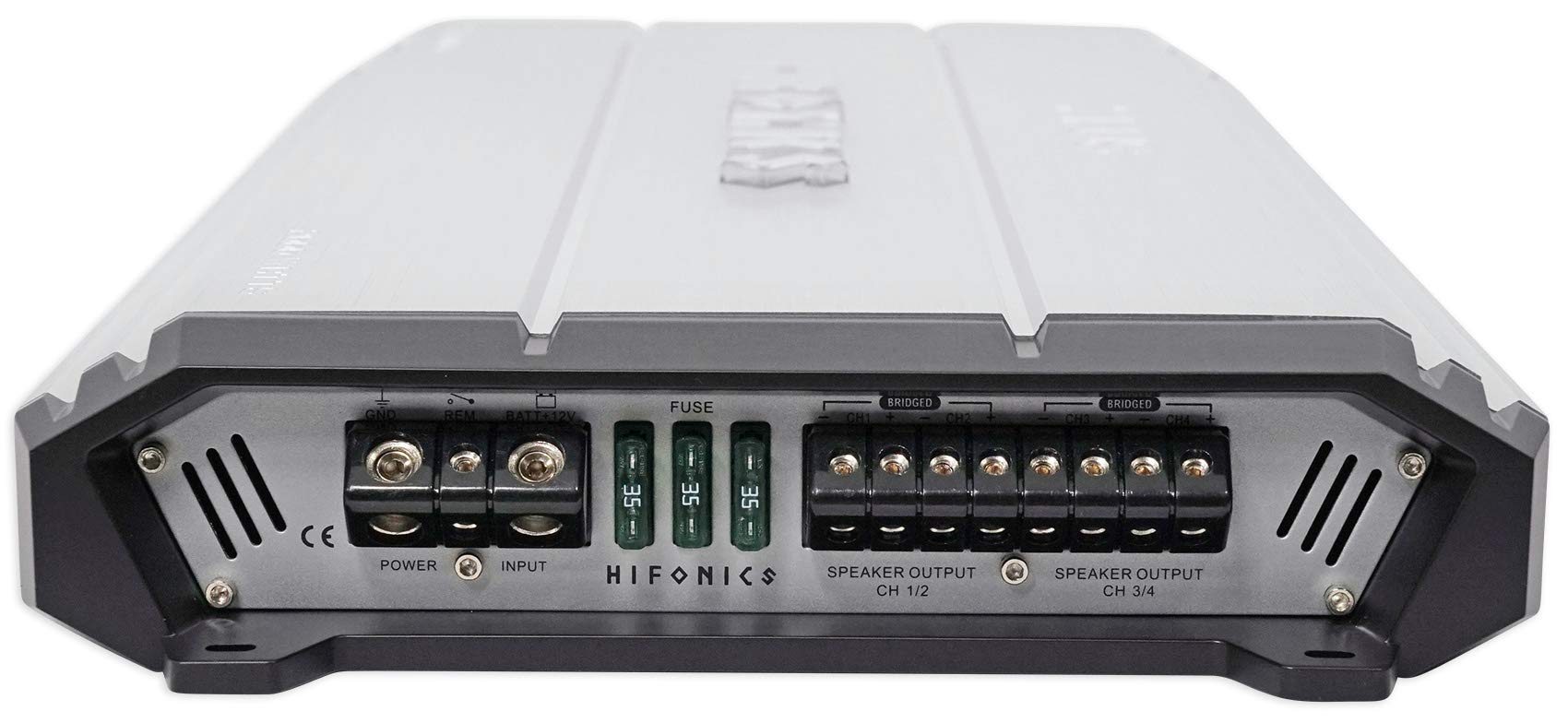

- Package Includes: (1) Hifonics Zeus ZXX-2000.4 2000 Watt RMS 4 Channel Class AB Car Amplifier Amp. (1)Rockville RWK4CU 4 AWG Gauge 100% Copper Complete Amp Installation Wire Kit OFC. (1) Rockville RFC30F 30 Farad Capacitor Blue Voltage Display. Features: New Hifonics Zeus ZXX-2000.4 2000 Watt RMS 4 Channel Class AB Car Amplifier. Pre-Amp Circuitry: Low Noise PreAmplifier - Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion
- Inputs: Nickel Plated - High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant. Hi Level Inputs: Low Level RCA Inputs and Outputs - Highest sound quality connection. Operation Mode: 2 , 4 channel or 3 channel mode - Flexible installation allows this amplifier to run in two channel or bridged mono mode.. Class / Topology: Class A/B - Designed to be high sound quality with minimal distortion
- Output Devices Technology: PWM MOSFET Power Supply - Stable power through the PC board with minimal heat generation. Heat Sink: Aluminum - Old School Hifonics Heat sink for Superior Heat Dissipation. Power Supply: Simpatico Coil Design - The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. Output Connections: RCA Outputs - Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
- Connections Type : Molded / Angled - Secure connection for all system wires. Angled for ease of access for installation. Diagnostics: Diagnostic Indicators DC, Short Circuit, Thermal and Overload Protection - Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel. Illumination: Illuminated Logo - The Hifonics logo illuminates when the amplifier is powered, making a #PowerFromTheGods statement in the dark. Specifications: Class: Class A/B
- Variable Voltage: 6V - 0.2V. Signal to Noise Ratio: >91dB. Frequency Response: 10Hz-45KHz. Crossover Type: Variable Electronic. High Pass Crossover 12dB Per Octave: 60Hz-1.2KHz. Low Pass Crossover 12dB Per Octave: 30Hz-250Hz. Bass Boost: 0~12dB. Power @ 2-Ohms: 4x500W. Power @ 4-Ohms: 4x250W. Bridged @ 4-Ohms: 2x1000W. Total Channels: 4. Audio Inputs: RCA Jack. Audio Outputs: RCA Jack. Power Terminal 12v/GND: 4 gauge. Speaker Terminal Wire Gauge: 12 gauge. Fusing: 35A x 3
- ›See more product details

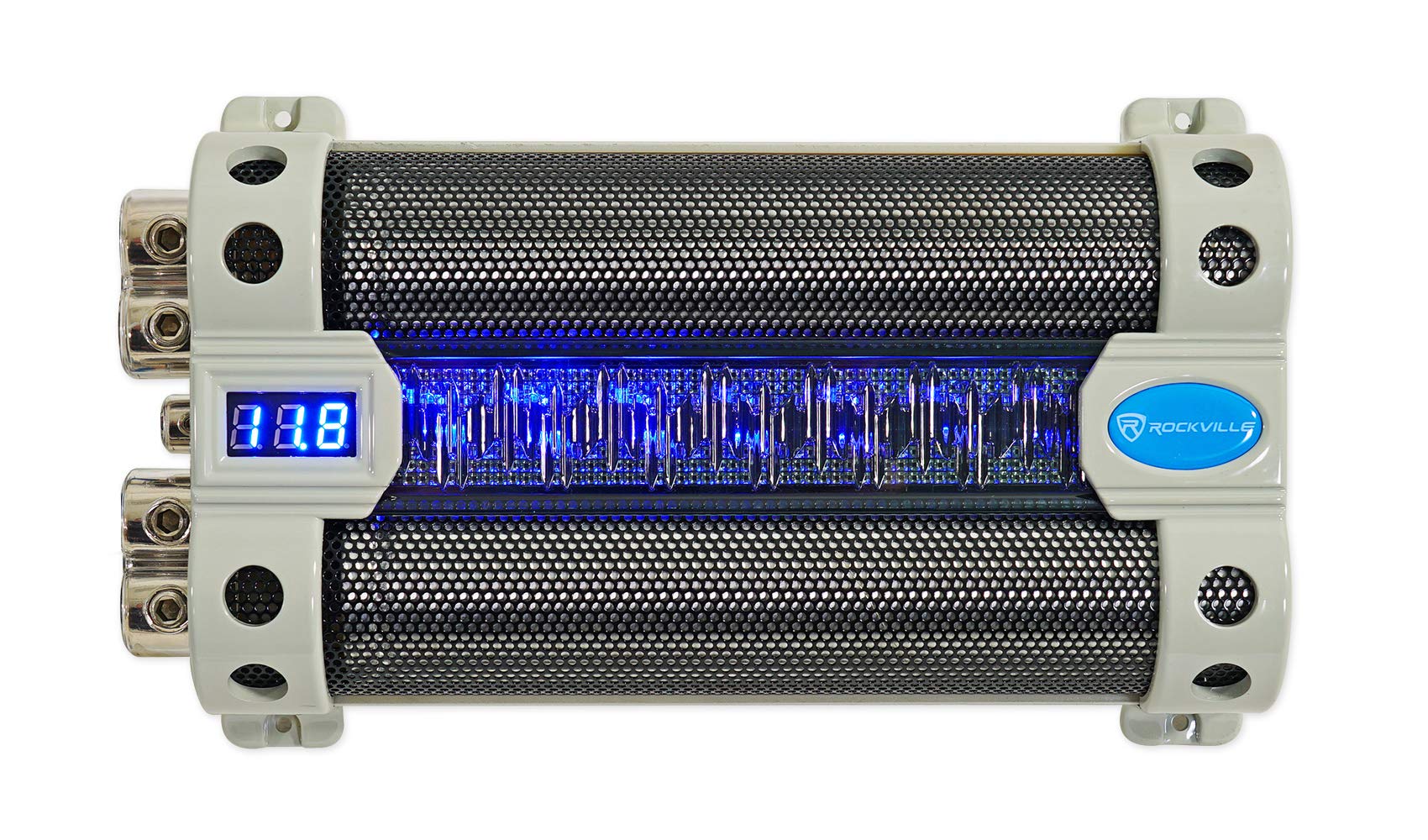

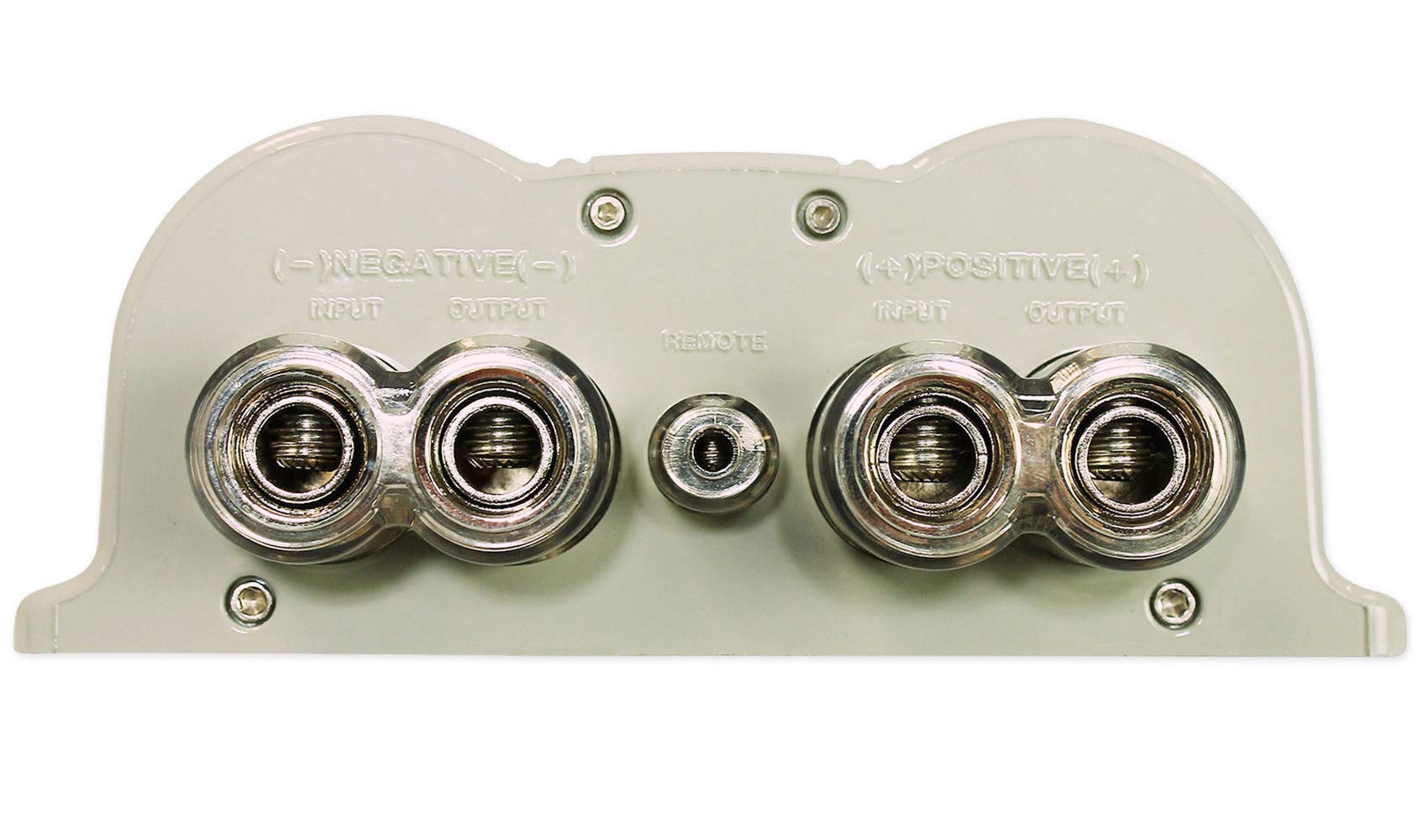

Dimensions: 22 x 2.4 x 10 inches (55.8 x 6 x 25.4 cm). Weight: 13 lbs (5.8 kg). Features: Rockville RFC30F 30 Farad Capacitor Blue Voltage Display. ESR (Equivalent Series Resistance): 0.015 ohm @ 120Hz, 25C. 30 Farad Digital Hybrid Capacitor with Blue Illumination. Blue illuminated window with light following played music. Black wire mesh cover. Warning tones for reverse polarity connection. 3-Digit, super bright LED voltage meter. Automatic sleep status when volume is low. Operating Voltage: 10 - 16V DC. Surge Voltage: 20V DC. Voltage measure accurate to +/- 0.1VDC. Capacitance tolerance: +/- 10%. Over-voltage protection circuit automatically alarms when the voltage above 17.5V or under 10V. Unit dimensions (Inches): 10.91 L x 6.38 W x 2.56 H. Rockville RWK4CU 4 Gauge 2 Channel Complete Car Amplifier Installation Kit 100% Pure Copper RCA Cables. 4 Gauge Power Amplifier Installation Kit. Designed specifically for car audio systems over 1000 watts RMS to 2000 Watts. Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal. The solid brass gold plated Mini ANL Fuse Holder offers ideal protection for high powered systems. Strand Count: 1862. BC-5W2 Compliant. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal. 3 ft. Frosted Gray 4 gauge ground wire. 17 ft. Blue 18 gauge remote lead wire. 25 ft. Frosted Clear/Blue 14 gauge flat speaker wire. 17 ft. Triple shielded twisted pair RCA cables. One Mini ANL Fuse Holder with 120 amp ANL fuse. One 1/2 black rubber firewall grommet. One 4 gauge spade terminal. Two black 12 gauge nickel-plated spade lugs. Three blue 12 gauge nickel-plated spade lugs. One black 4 gauge ring terminal. Ten 6 black zip ties A classic Hifonics aluminum heatsink with a 2000 Watt 4-channel, bridgeable Zeus car audio amplifier with onboard electronic crossover. Features: Have you noticed your headlights dimming to the beat when you hit those heavy bass notes on your cars custom sound sy
