POE Injector -2Port Poe for 48V15.4W with IEEE802.3i 10 Base-T IEEE802.3i 100 Base-TX IEEE802.3X Flow Control (POE Injector)

Description

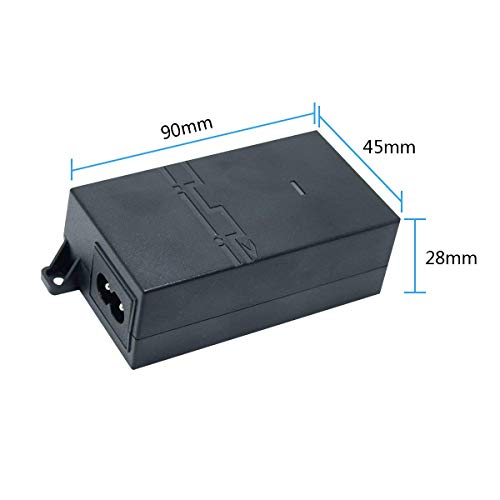

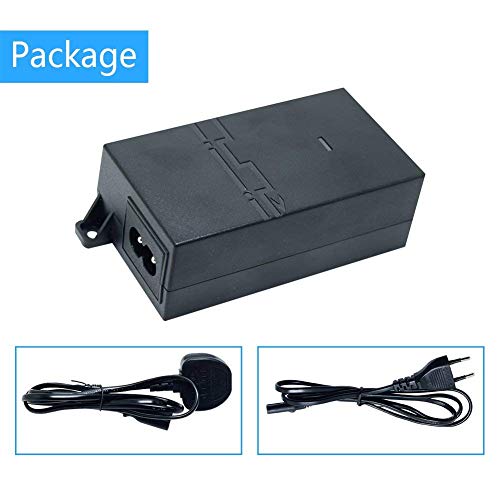

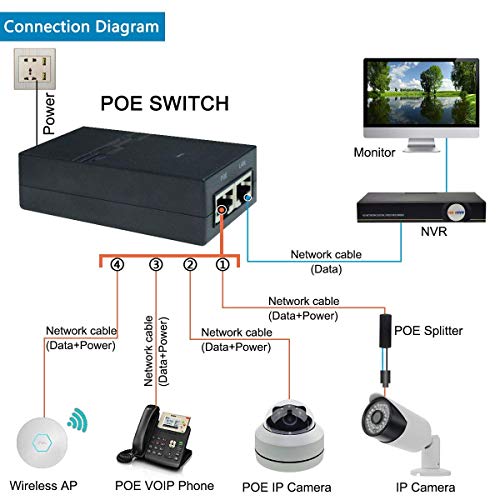

Size:POE Injector Product Description: Data port: Data port connected to the switch POE port: 1 POE port output, connected to POE powered device 220VAC Power Inputs: Provide Power Sources for POE Ports Compliance with the standard:IEEE802.3i 10 BASE-T,IEEE802.3i 100 BASE-TX, IEEE802.3x flow control 15.4W per port POE power:4/5+, 7/8-pairs GB unshielded Category 5 twisted-pair or higher cable Forwarding is not stored Power input: 100-240VAC, 47-63Hz The power available power is greater than 84% POE power output: voltage 48V±5%, current 0~0.33A, maximum 15.4W Port speed: 10/100Mbps LED indicator: Power indicator AC interface: Plum 3 pin, AC-031B (DB-6) Material: PPO, PC, PC+ABS, or equivalent Ambient temperature: Operating temperature: -20 to +55°C Storage temperature: -20 to +60°C Environmental Humidity: 20~90% non-condensing Size: 100*53*35mm (L*W*H) Package including: 2xPower cord 1xPOE Injector PLEASE NOTE: The POE power supply itself does not have a data switch function and needs to be used in conjunction with a network switch.Combine switch network data with power supply,Through network cables that provide power and data transmission to remote power receiving terminals which get rid of power layout and network formation.
