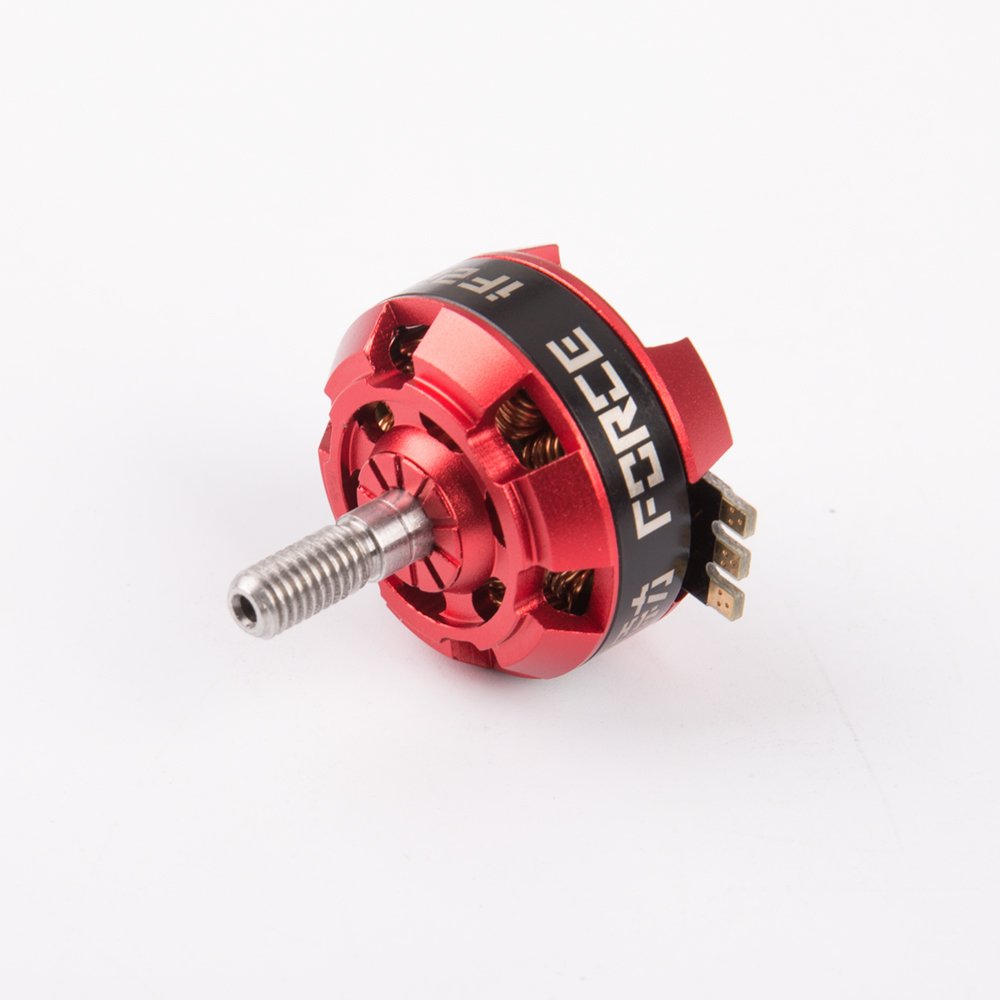

iPower Motor the Force iF2205 2300KV Brushless Motor Race Spec Compatible with 5" propeller for iX5 QAV250 FPV Racing Frame

Description

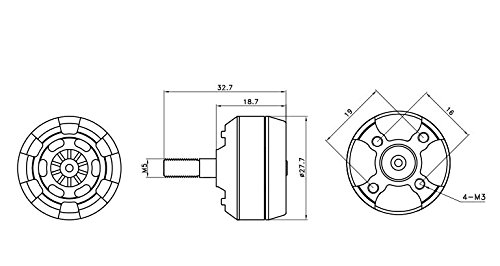

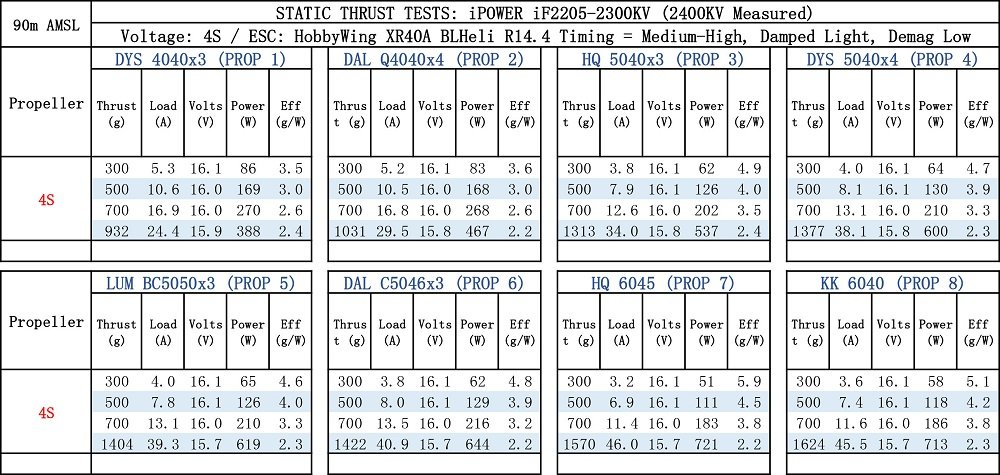

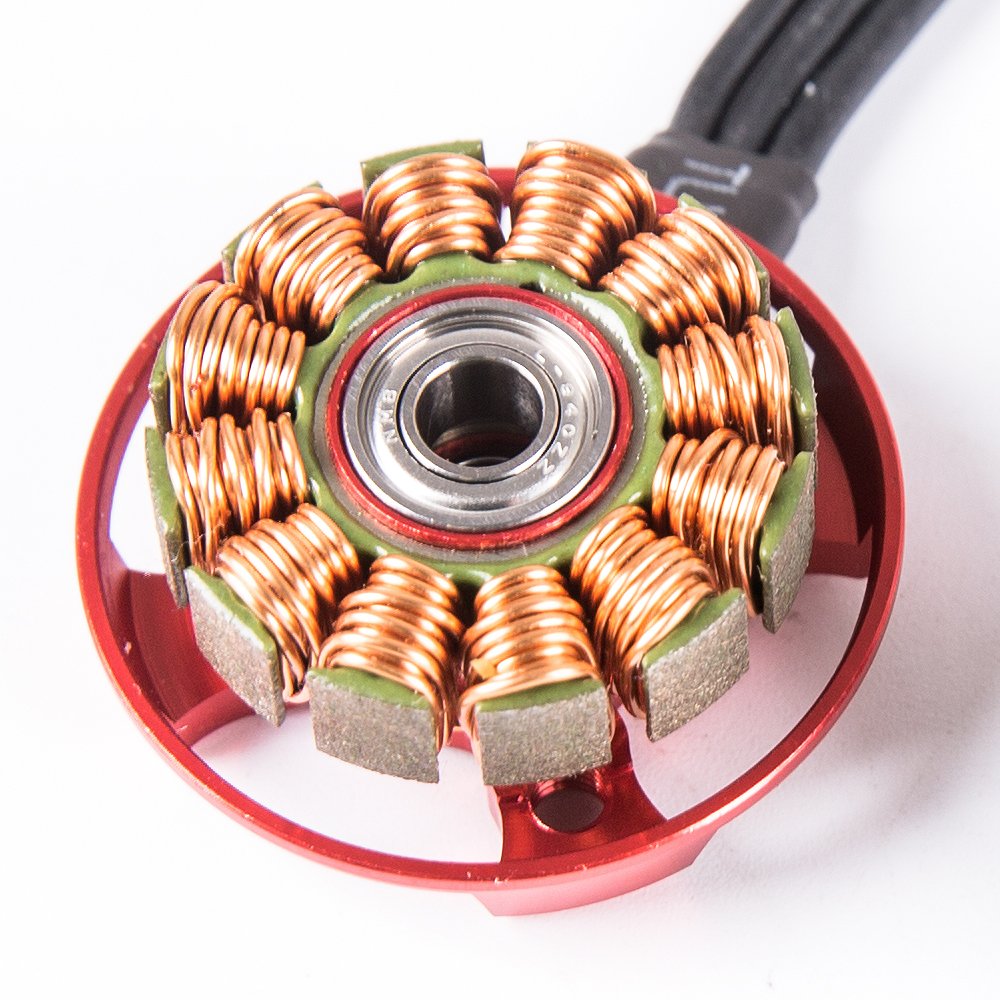

iPower the Force iF2205 2300KV FPV Racing MotorFlying test video:https://youtu.be/0kGf3AYSY9ADescriptions:Introducing the Force are the most powerful versions of high performance brushless motors for multirotor FPV racing.A completely new design that increases cooling and efficiency, these motors provide the ultimate power for your FPV Racing Quads.The stators are made with 0.15mm laminations for maximum efficiency and minimum Eddy Current losses.These motors also have 3mm threaded holes in a 16x19mm pattern on the back plate for easy installation on your model.Features-1240+ Thrust with 4s battery and recommend propeller combo-Cooling Series Bell Design reduces motor temperature by at least 30%-Highest Grade N52 Neodymium magnets-Genuine Japanese NMB Bearings-Each Motor is Dynamically Balanced in the factory.-Windings made from copper of high puritySpecificationsModel: the Force 2205 2300KVKV: 2300kvWeight: Approx. 30g with wiresWire AWG: 20AWGStator Diameter: 22mmStator Height: 7mmShaft Diameter: 5mmConfiguration: 12N14PMotor Diameter: 27.9mmMotor Height: 31.7mmProp Adapter Shaft Thread: M5Input voltage: 3S-6S (12.6 - 16.8v)KV2300 With HQ5045 3-blade Max.thrust:1240gSuggested Combination : iPeaka 30A ESC & 5 inch propeller (iPeaka 25A is not recommend )Package included:- 1 x iF2205 2300KV MotorMay the Force Be With Your Drone!
