Note:
1. Please don't place any heavy thing on the PoE extender;
2. To prevent the water seeping into the extender, please keep PoE extender away wet environment;
3. Suggest to use PoE extender indoors. When installing the extender in outdoor please install it in a waterproof place.

PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards.
The PoE Extender supports 10/100Mbps data rates and delivers 802.3af power levels, up to 15.4W.
The PoE Extender does not require local power and is powered via the PoE input. Extended PoE installation range by additional 100m
Supports 10/100Mbps data rates
- Provides 802.3af power levels when powered by any 802.3at source
- Extenders can be cascaded to reach up to 700m
- Cost effective installation - no need for local power
- Plug and play installation - no configuration needed

Other Specification:
PoE input: 1 RJ45 port (DC 44-57V)
PoE output: 1 RJ45 port (48V)
PoE Pin Output: 1/2(+), 3/6(-)； MAX Power 15W
Network Medium: Cat5 or better UTP cables (less than 120m)
Repeater Mode: Store and forward
MAC Address Table: 2K
Packet Buffer Memory: 48 Byte
Switching Capacity: 400Mbps
PoE Standard: IEEE 802.3af
Input power: 13 Watts
Output power: 12.2 Watts
Power Supply Type: 1/2+,3/6-,Mode A, End-Span
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
Working temperature: -10°c to 45°c
Dimension: 75x37x26.5mm
Weight: 60g

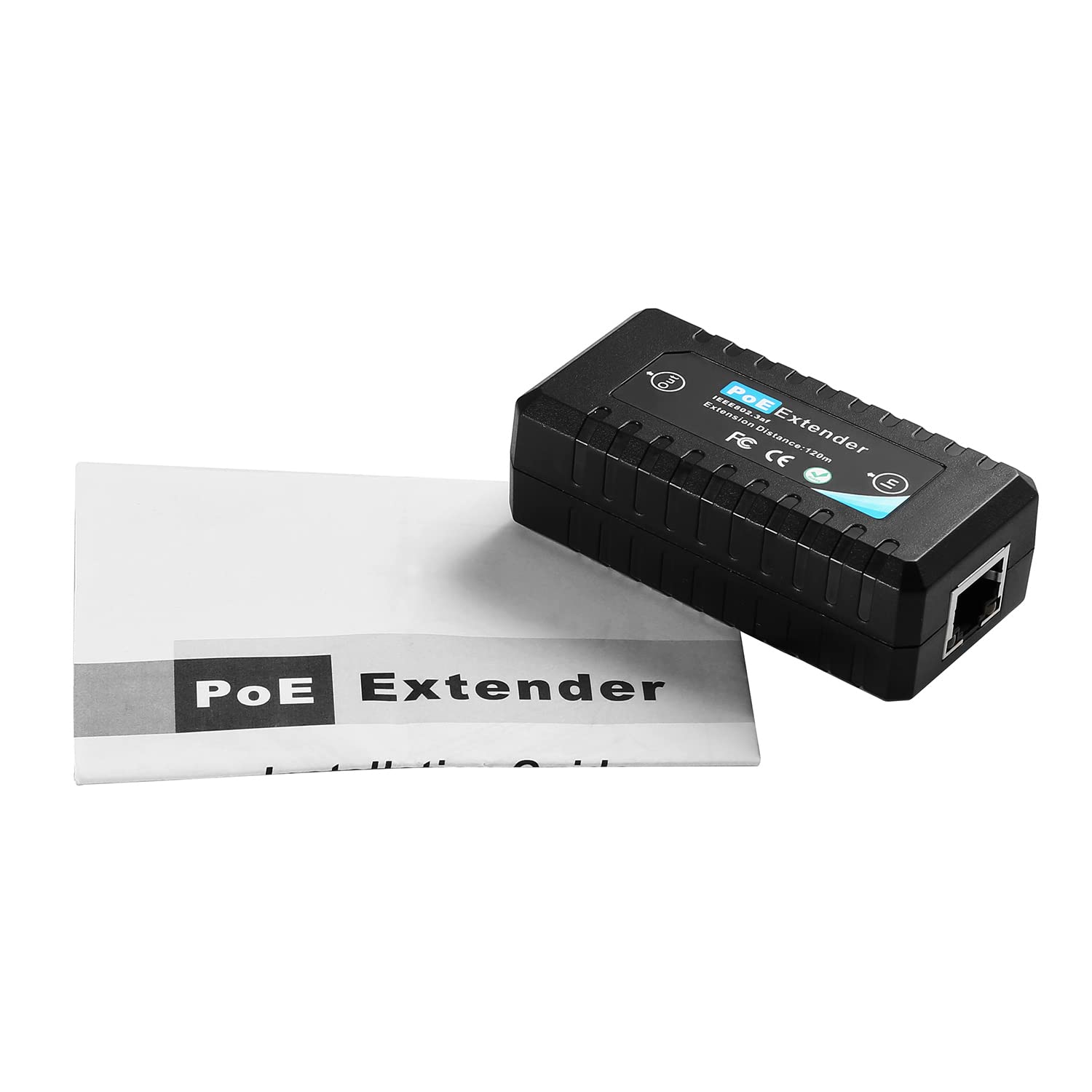

Package contents:
1 x POE Extender 100Mbps (POE5002)

Data Link Protocol	IEEE 802.3, Ethernet
Data Transfer Rate	100 Megabits Per Second
Compatible Devices	Camera
Hardware Connectivity	Ethernet
Item Dimensions L x W x H	2.95"L x 1.46"W x 1.04"H
Color	1 Port POE5002

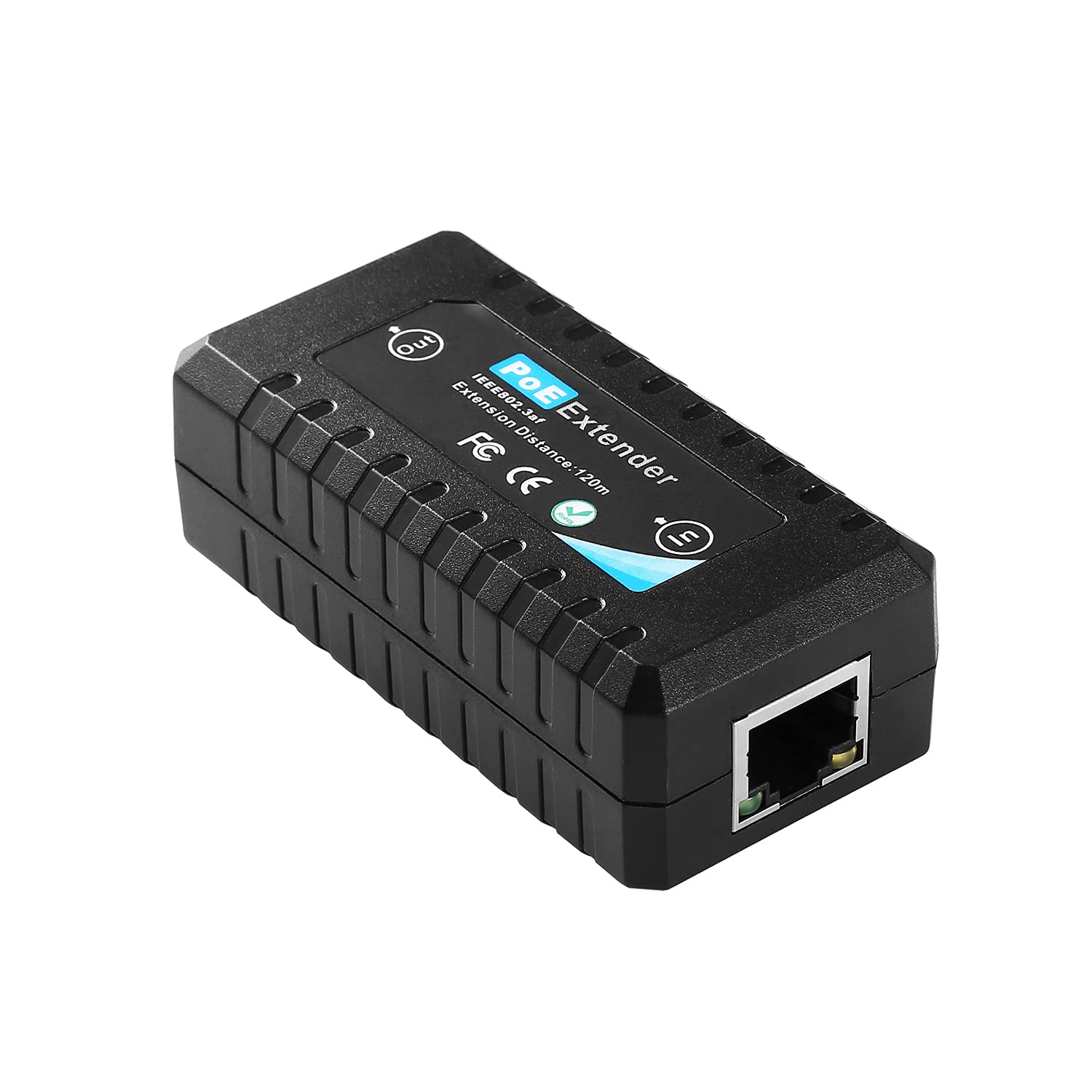

Revotech 1 Port POE Extender IEEE 802.3af Standard 10,100Mbps 100m(328 ft) POE Repeater for POE IP Camera Over Cat5 or UTP Cables(POE5002)
